Description
PRODUCT DESCRIPTION
FLEX FIRE PLUS is a premium PCU Paint Protection Film engineered to provide advanced protection for automotive paint against road hazards, scratches, UV exposure, and environmental elements.
Powered by Covestro TPU and advanced Nano Ceramic Coating technology, FLEX FIRE PLUS combines high flexibility, excellent optical clarity, hydrophobic performance, and self-healing properties for long-term paint protection.
KEY FEATURES
- Covestro TPU
- PCU Premium Material
- Self-Healing Technology
- Hydrophobic Surface
- Nano Ceramic Coating
- Antibacterial Coating
- High UV Rejection
- High Gloss
- High Elongation
- High Tensile Strength
- Scratch Resistance
- Long-Term Performance
TECHNICAL SPECIFICATIONS
| Specification |
Value |
| Model |
PCU-180 |
| Top Film Thickness |
55 ± 2 μm |
| Total Product Thickness |
210 ± 10 μm |
| Liner Film Thickness |
75 ± 3 μm |
| Gloss @ 60° |
100.0 |
| UV Rejection |
96.2% |
| QUV Ageing Resistance |
PASS |
| Hydrophobic Performance |
Hydrophobic |
| Surface Permeability Resistance |
Slight Trace |
| Self-Healing at Ordinary Temperature |
100% |
| Acrylic Peeling Force / 20 min |
2220 gf/inch |
| Acrylic Peeling Force / 24 h |
3315 gf/inch |
| Coating Elongation at Break |
200% |
| Tensile Strength |
31.20 MPa |
| Elongation at Break |
430.00% |
| 100% Modulus |
7.06 MPa |
TEST METHODS
- Top Film Thickness: ASTM D374
- Total Product Thickness: ASTM D374
- Liner Film Thickness: ASTM D374
- Gloss: Gloss Meter @ 60°
- UV Rejection: LS162 Test Meter
- QUV Ageing Resistance: ASTM G154-16, Circulation 1
- Surface Permeability Resistance: MG-2110 Mark Pen, 10 seconds after alcohol wipe
- Self-Healing: Brass brush, 10 times, ordinary temperature, 1 second
- Acrylic Peeling Force: GB/T 2792
- Coating Elongation at Break: GB/T 1040.1
- Tensile Strength: GB/T 1040.1
- Elongation at Break: GB/T 1040.1
- 100% Modulus: GB/T 1040.1
TDS NOTES
- Total thickness represents the Top Film + Polyurethane (TPU) Film + Adhesive.
- QUV ageing resistance testing duration: 2000 hours.

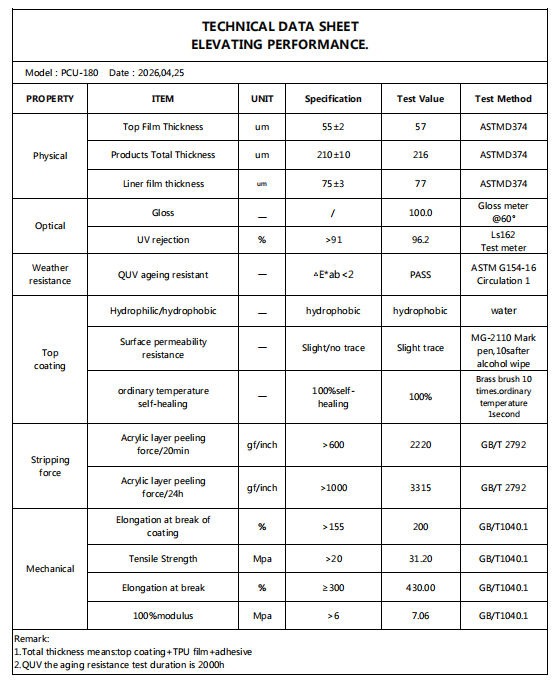

TECHNICAL DATA SHEET
Official Product Documentation
Download the official FLEX FIRE PLUS PCU-180 Technical Data Sheet for complete product specifications and test information.
DOWNLOAD TDS
PRODUCT GALLERY
FLEX FIRE PLUS PCU-180
Gallery sections prepared for:
- Product Packaging — Front
- Product Packaging — Back
- Product Packaging — Side Views
- Packaging Details
- Product Roll
- Film Material
- Film on Vehicle
- Installation
- Factory
- Product Testing
- Additional Factory Images
FLEX FIRE PLUS PRODUCT VIDEOS
Product Video Gallery
Prepared video categories:
- Product Introduction
- Factory Production
- Material / Technology
- Self-Healing Test
- Hydrophobic Test
- UV / Weather Resistance Test
- Installation Video
- Product Performance Tests
WARRANTY
10 YEARS WARRANTY
Protect your investment with the official 10-Year FLEX FIRE PLUS Warranty.
ACTIVATE WARRANTY
VERIFY WARRANTY
PERFORMANCE & WARRANTY
UP TO 15 YEARS PERFORMANCE
The product’s performance life and the FLEX warranty are separate:
Performance: Up to 15 Years
FLEX Warranty: 10 Years
