ULTIMATE PROTECTION. LASTING PERFORMANCE.
30.000,00 EGP
FLEX FIRE PLUS TPU-K75 is a high-performance TPU Paint Protection Film engineered to help protect automotive paint against everyday road hazards, scratches, UV exposure and environmental elements.
With a high-gloss finish, hydrophobic surface and heat-activated self-healing performance, TPU-K75 combines optical clarity, flexibility, strong adhesion and mechanical strength to provide reliable long-term paint protection.
High-performance TPU-based construction designed for automotive paint protection applications.
Provides 100% self-healing performance under the specified ordinary-temperature test conditions.
The top coating provides a hydrophobic surface designed to repel water and support easier maintenance.
Delivers a high-gloss appearance with a tested gloss value of 95.3 at 60°.
Provides tested UV rejection of 95.8%, helping protect the paint surface from UV exposure.
Passed the specified QUV ageing resistance test with a criterion of ΔE*ab < 2 over a 2000-hour test duration.
Tested elongation at break of 320.99%, providing flexibility for automotive applications.
Tested tensile strength of 22.51 MPa.
Acrylic layer peeling force tested at 1795 gf/in after 20 minutes and 2276 gf/in after 24 hours.
Demonstrates slight trace under the specified MG-2110 mark-pen test conditions.

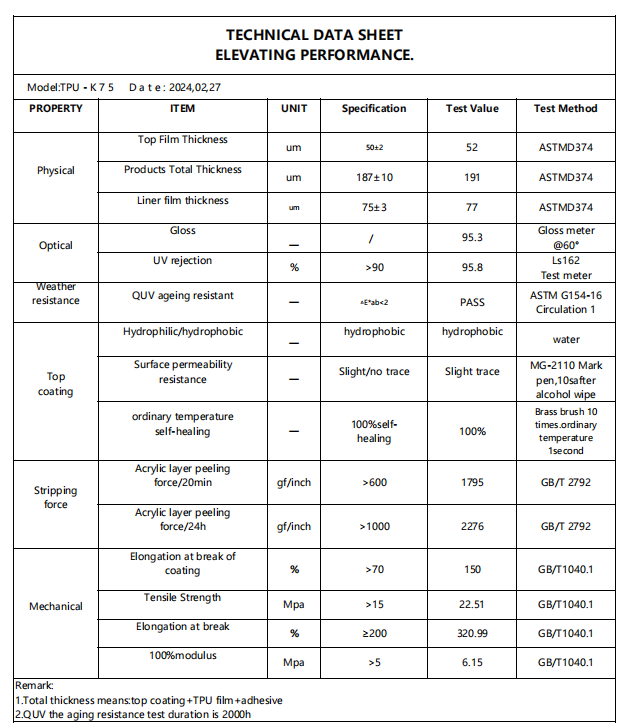

| Property | Specification | Test Value | Test Method |
|---|---|---|---|
| Top Film Thickness | 50 ± 2 μm | 52 μm | ASTM D374 |
| Total Product Thickness | 187 ± 10 μm | 191 μm | ASTM D374 |
| Liner Film Thickness | 75 ± 3 μm | 77 μm | ASTM D374 |
| Gloss | — | 95.3 | Gloss Meter @60° |
| UV Rejection | >90% | 95.8% | LS162 Test Meter |
| QUV Ageing Resistance | ΔE*ab < 2 | PASS | ASTM G154-16, Cycle 1 |
| Surface Property | Hydrophobic | Hydrophobic | Water |
| Surface Permeability Resistance | Slight / No Trace | Slight Trace | MG-2110 Mark Pen, 10s After Alcohol Wipe |
| Ordinary Temperature Self-Healing | 100% Self-Healing | 100% | Brass Brush 10 Times, Ordinary Temperature, 1 Second |
| Acrylic Peeling Force – 20 min | >600 gf/in | 1795 gf/in | GB/T 2792 |
| Acrylic Peeling Force – 24 h | >1000 gf/in | 2276 gf/in | GB/T 2792 |
| Elongation at Break of Coating | >70% | 150% | GB/T 1040.1 |
| Tensile Strength | >15 MPa | 22.51 MPa | GB/T 1040.1 |
| Elongation at Break | ≥200% | 320.99% | GB/T 1040.1 |
| 100% Modulus | >5 MPa | 6.15 MPa | GB/T 1040.1 |
Model: TPU-K75
TDS Date: February 27, 2024
The complete Technical Data Sheet provides detailed product specifications, test values and testing methods for FLEX FIRE PLUS TPU-K75.
[ DOWNLOAD TDS ]
A premium visual presentation of the TPU-K75 product, packaging, film construction and real-world application.
Additional product and factory images can be added as they become available.
An introduction to FLEX FIRE+ TPU-K75 and its protection capabilities.
An inside look at the manufacturing and quality-control process.
Explore the TPU construction and surface coating technology.
Demonstration of the film’s 100% self-healing performance under the specified test conditions.
Demonstration of the hydrophobic surface performance.
Testing and demonstration of UV rejection and QUV ageing resistance.
Professional installation and application process.
Laboratory and real-world performance demonstrations.
FLEX FIRE PLUS TPU-K75 is backed by a 10-Year Warranty, providing customers with long-term confidence in their paint protection investment.
Up to 15 Years
Expected product performance/lifetime under appropriate conditions.
10 Years
The official customer warranty period provided by FLEX FIRE+.
ACTIVATE WARRANTY
Register your FLEX FIRE+ product and activate your warranty.
VERIFY WARRANTY
Verify your FLEX FIRE+ warranty information.
